Tiger VM Series
Tiger VM Series

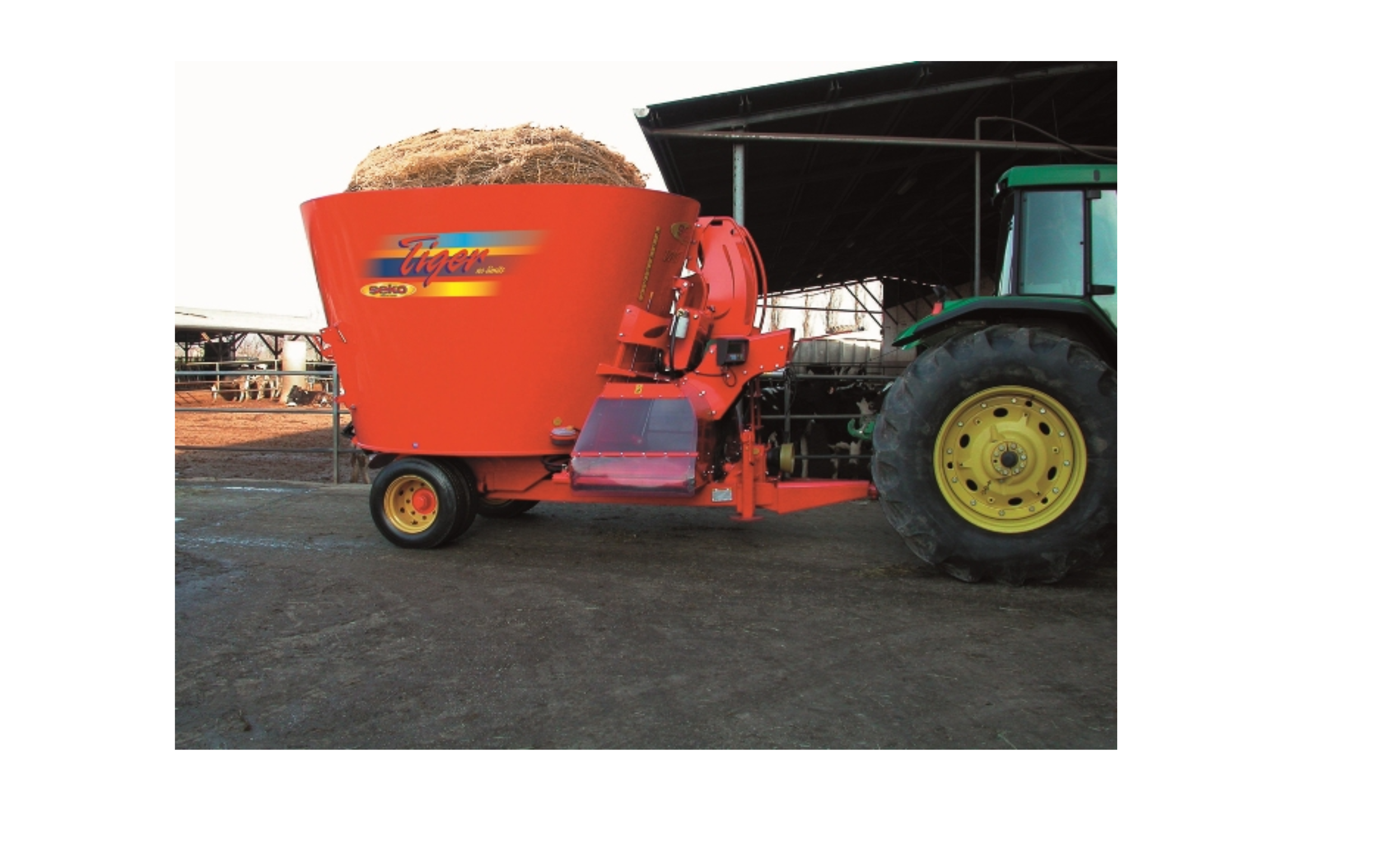

The wide range of Chopping-Mixing-Wagons TIGER VM Series proposes the most complete and versatile solutions for Unifeed preparation in farms with dairy cows and fattening cattle. Thanks to the experience achieved over several years alongside farmers all over the world, we have developed this new line of machines endowed with the most advanced technology, concentrating in them simplicity, strength and reliability. An extraordinary product with a range from in self-propelled, trailed and stationary versions, which really meets the new demand of a feeding more and more aimed to achieve the best results both in terms of production and health for the animals.
Hydraulic couplings to the tractor with \’push-pull\’ levers distributor
Inspection access ladder with platform
Single axle with single wheel
Upper containment edge with tubolar ring and fixing spokes
Adjustable draw-bar
Mechanical standing foot
Manually operated counter-blades
Epicyclodial angular gear-box
Weighing system sekotronic L150 with 15 Np. Programs
2 Speed gear for lower power absorption and quick emptying
VM 90 9m³
Overall Height : 2714mm Overall Width : 2498mm
Overall Length : 5117 Volume : 9m³
Power Required : 60HP Unladen Weight : 4100Kg
VM 110 11M³
Overall Height : 2898mm Overall Width : 2597mm
Overall Length : 5220mm Volume : 11m³
Power Required : 70HP Unladen Weight : 4300Kg
VM 120 12M³
Overall Height : 2677mm Overall Width : 2255mm
Overall Length : 6695mm Volume : 12m³
Power Required : 80HP Unladen Weight : 5700Kg
VM 130 13M³
Overall Height : 3174mm Overall Width : 2597mm
Overall Length : 5299mm Volume : 13m³
Power Required : 80HP Unladen Weight : 4500Kg
VM 140 14M³
Overall Height : 2776mm Overall Width : 2255mm
Overall Length : 6761mm Volume : 14m³
Power Required : 90HP Unladen Weight : 6000Kg
VM 150 15M³
Overall Height : 3307mm Overall Width : 2675mm
Overall Length : 5435mm Volume : 15m³
Power Required : 90HP Unladen Weight : 4800Kg
VM 160 16M³
Overall Height : 2991mm Overall Width : 2255mm
Overall Length : 6822mm Volume : 16m³
Power Required : 100HP Unladen Weight : 6300Kg
VM 200 20M³
Overall Height : 7431mm Overall Width : 2555mm
Overall Length : 7431mm Volume : 20m³
Power Required : 110HP Unladen Weight : 7000Kg
VM 240 24M³
Overall Height: 3171mm Overall Width : 2655mm
Overall Length : 7704mm Volume : 24m³
Power Required : 160HP Unladen Weight : 7500Kg
