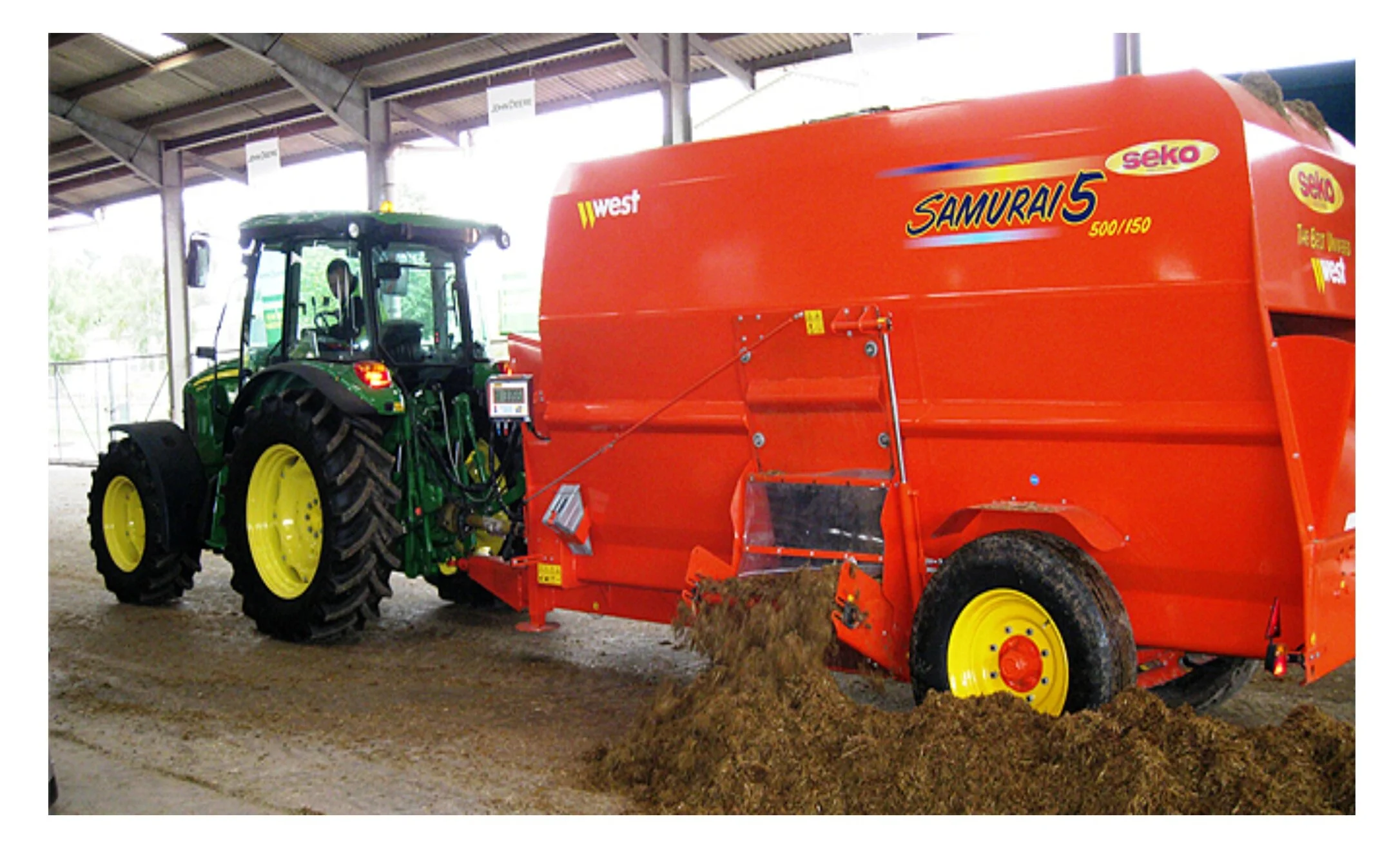

Samurai Unifeed 5 Series


Samurai Unifeed 5 Series

£0.00

An exclusive range for all needs. The wide range of Chopping-Mixing-Wagons SAMIRAI 5 Series proposes the most complete and versatile solutions for Unifeed preparation in farms with dairy cows, fattening cattle and sheep-and-goat livestock.Thanks to the experience achieved in several years alongside farmers all over the world. We have developed this new line of machines endowed with the most advanced technology, concentrating in them simplicity , strength and reliabiltiy.

sold out
Add To Cart

  • New upper edges for containing bulky fibrous products with maximum shock resistance.

  • New rear wall of high thickness steel, arranged for 3 different loading systems.

  • New discharge conveyor with wide opening for a quick uniform discharge of the product.

  • New\”non-unscrewing\" System for blade fixing through bolts with right and left screw thread.

  • New augers at high resistance and thickness (12-15 and 20mm) according to the model.

  • New weighing system of better reliability and precision.

  • New box bottom lining in high resistance steel with thicker material.

  • New strengthened counter-blades at high efficiency on tough products.

  • New epicycloidal reduction gear of higher quality at elevated torque.

  • New adjustable and interchangeable draw bar.

  • High resistance chains with lubricating system in permanent oil bath.

  • New strengthened control board for electric and hydraulic components.

  • Compact and strong, completely welded.

  • New designed mixing box.

MODEL : 400/50 Overall Length : 4794mm

Overall Width : 1556mm Overall Height : 2063mm

Unladen Weight : 2600Kg Tyres : 26/8 R14

Power Requirment : 30Hp PTO rpm : 540

MODEL : 450/70 Overall Length : 5133mm

Overall Width : 1905mm Overall Height : 2265mm

Unladen Weight : 3600Kg Tyres : 285/70 R19,5

Power Requirment : 40Hp PTO rpm : 540

MODEL : 450/90 Overall Length : 5583mm

Overall Width : 1905mm Overall Height : 2265mm

Unladen Weight : 3900Kg Tyres : 285/70 R19,5

Power Requirment : 50Hp PTO rpm : 540

MODEL : 500/110 Overall Length : 5887mm

Overall Width : 2045mm Overall Height : 2406mm

Unladen Weight : 4900Kg Tyres : 315/70 R19,5

Power Requirment : 60Hp PTO rpm : 540

MODEL : 500/130 Overall Length : 5887mm

Overall Width : 2045mm Overall Height : 2656mm

Unladen Weight : 5100Kg Tyres : 315/70 R19,5

Power Requirment : 70Hp PTO rpm : 540


MODEL : 500/150 Overall Length : 6487mm

Overall Width : 2045mm Overall Height : 2656mm

Unladen Weight : 5400Kg Tyres : 315/70 R19,5

Power Requirment : 80Hp PTO rpm : 540

MODEL : 600/170 Overall Length : 6505mm

Overall Width : 2335mm Overall Height : 2791mm

Unladen Weight : 6200Kg Tyres : 385/65 R22,5

Power Requirment : 90Hp PTO rpm : 540

MODEL : 600/200 Overall Length : 7105mm

Overall Width : 2335mm Overall Height : 2791mm

Unladen Weight : 6500Kg Tyres : 385/65 R22,5

Power Requirment : 100Hp PTO rpm : 540

MODEL : 600/230 Overall Length : 7406mm

Overall Width : 2335mm Overall Height : 3000mm

Unladen Weight : 7800Kg Tyres : 385/65 R22,5

Power Requirment : 120Hp PTO rpm : 540

MODEL : 650/250 Overall Length : 8013mm

Overall Width : 2557mm Overall Height : 3159mm

Unladen Weight : 9800Kg Tyres : 18R 22,5

Power Requirment : 160Hp PTO rpm : 1000

MODEL : 700/300 Overall Length : 8992mm

Overall Width : 2657mm Overall Height : 3264mm

Unladen Weight : 11100Kg Tyres : 1000rpm

Power Requirment : 200Hp PTO rpm : 1000
