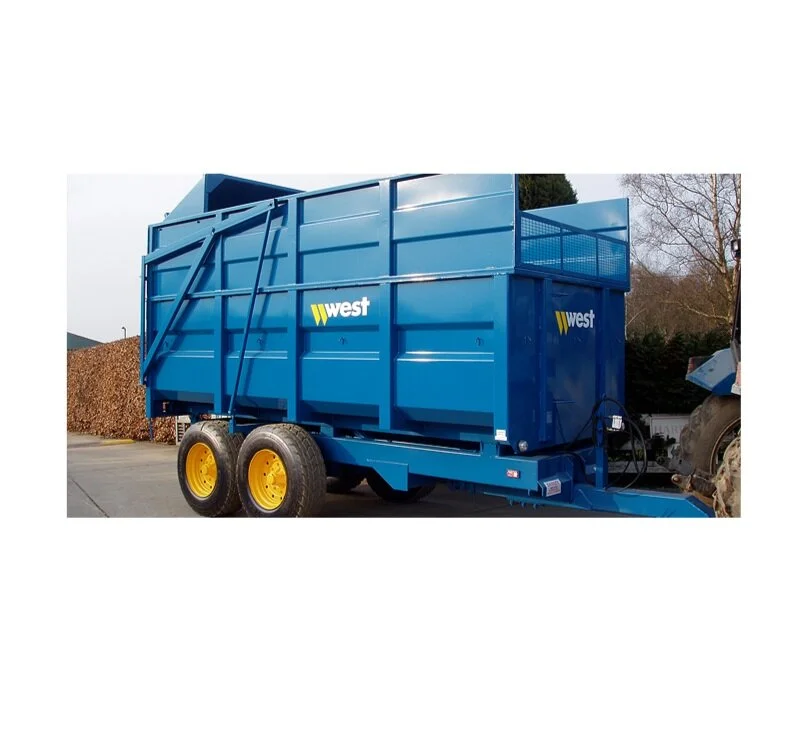

Built for strength and durability, the range of monocoque trailers from Harry West have been developed to tackle the toughest working conditions on the land.

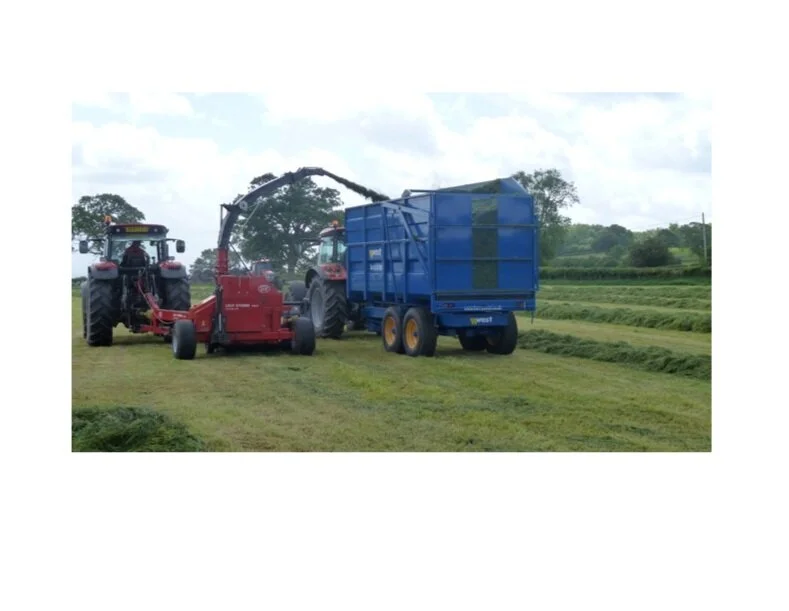

Available in 10 & 12 tonne models, each features a parallel chassis with monocoque constructed tapered body for easy unloading, and tandem axles. The silage equipment kit provides front loading, sides, automatic opening back and silage canopy as standard.
Body.  Monocoque designed body constructed in 3mm steel with 4mm thick floor and 5mm ribs on the 10t & 12t models for maximum strength.

The rear grain door is hinged at the top and locked with a 22mm diameter lockbar. The tapered body is equipped with drain holes at the front and steps for easy front access. Hydraulic Rams. The trailers are lifted on two or three-stage hydraulic rams, depending on model capacity, and feature long-life, hard-wearing seals. Chassis.  The chassis is ruggedly constructed from 250 x 150 x 8mm box section with load-bearing cross-members and extra strong ram and pivot mounting plates.

Reducer bushes are supplied for the ring hitch.
Axles.  Heavy duty beams with monocoque type hubs and wide cam, hydraulically operated brakes. Axles have steel hubs with cast iron 8-stud drums and larger format brakes as standard.

Sprung drawbars are standard. Road Lighting.  All trailers are equipped with full road lighting to MOT requirements. Rear lights are positioned under the trailer for added protection against accidental damage. Optional Extras.  A wide range of optional extras are available to suit individual requirements, including side loading silage sides, side loading, plus canopy, automatic up-and-over hydraulic grain doors, grain chute. All trailers are robustly constructed from first class materials and all welds are by the M.I.G process. All our trailers are built to high standards for quality and reliabiltiy.

10t Grain

Width Front (Body) : 2.034m Width Rear (Body) : 2.184m

Length (Body) : 4.98m Height (Body) : 1.220m

Volume (Level Fill) : 12.88m³ Overall Height : 2.475m

Height of Floor : 1.23m Overall Length : 6.45m

Overall Width : 2.44m Unladen Weight : 3.76 tonnes

10t Silage

Width Front (Body) : 2.034m Width Rear (Body) : 2.184m

Length (Body) : 4.98m Height (Body) : 2.10m

Volume (Level Fill) : 22.17m³ Overall Height : 3.791m

Height of Floor : 1.23m Overall Length : 6.45m

Overall Width : 2.44m Unladen Weight : 4.46 tonnes

12t Grain

Width Front (Body) : 2.034m Width Rear (Body) : 2.184m

Length (Body) : 5.950m Height (Body) : 1.220m

Volume (Level Fill) : 15.31m³ Overall Height : 2.475m

Height of Floor : 1.23m Overall Length : 7.25m

Overall Width : 2.44m Unladen Weight : 4.22 tonnes

12t Silage

Width Front (Body) : 2.034m Width Rear (Body) : 2.184m

Length (Body) : 5.95m Height (Body) : 2.10m

Volume (Level Fill) : 26.3m³ Overall Height : 3.791m

Height of Floor : 1.23m Overall Length : 7.25m

Overall Width : 2.44m Unladen Weight : 4.96 tonnes
